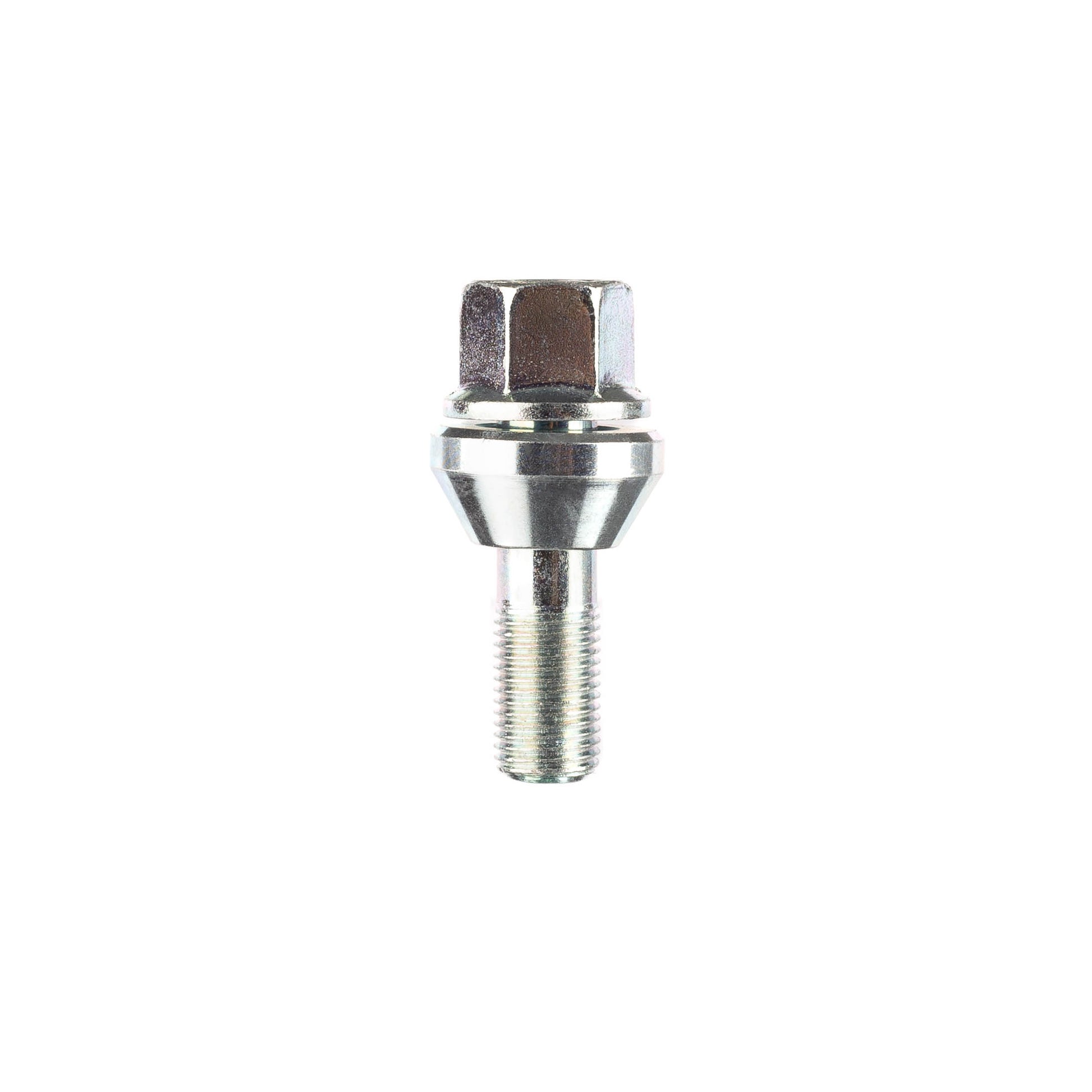

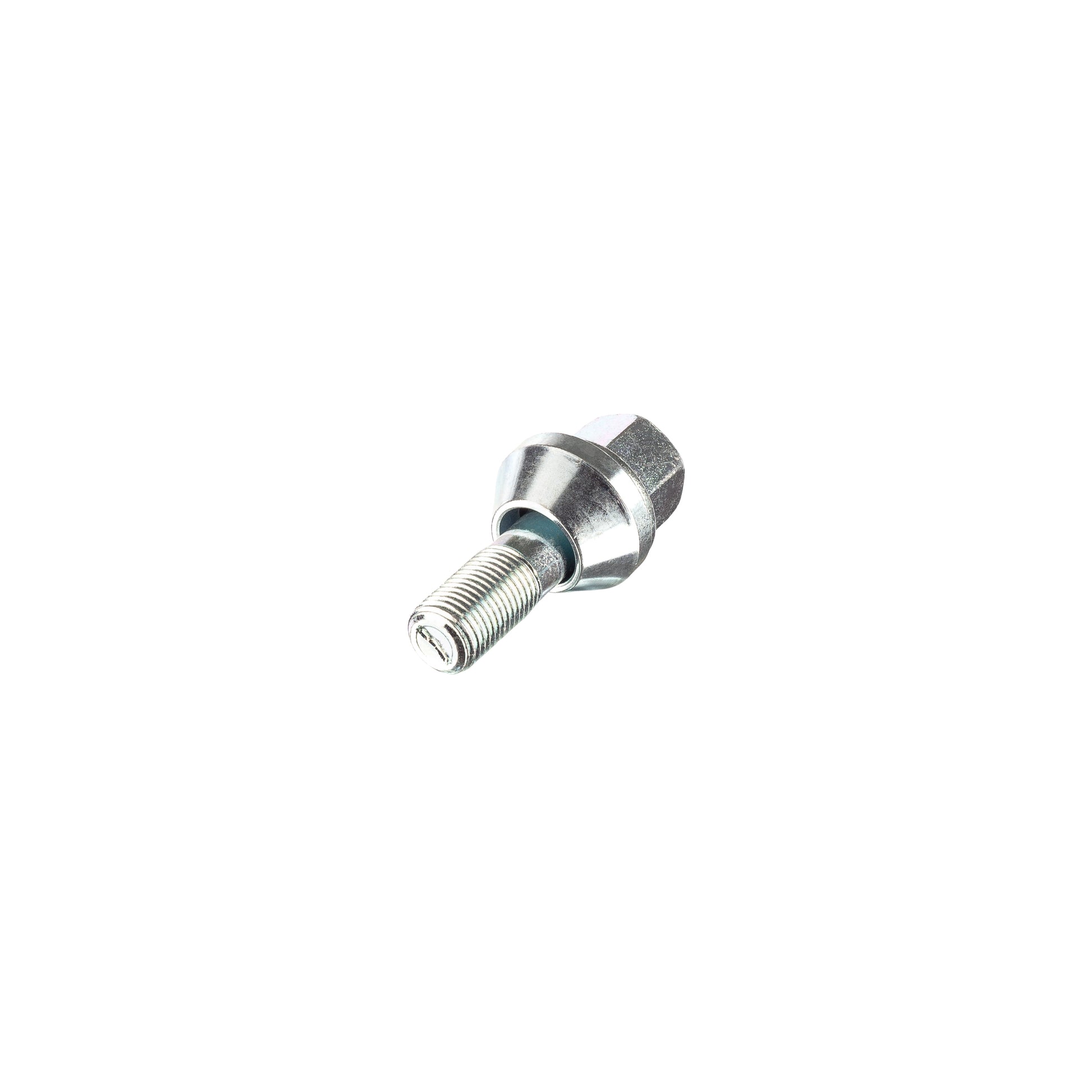

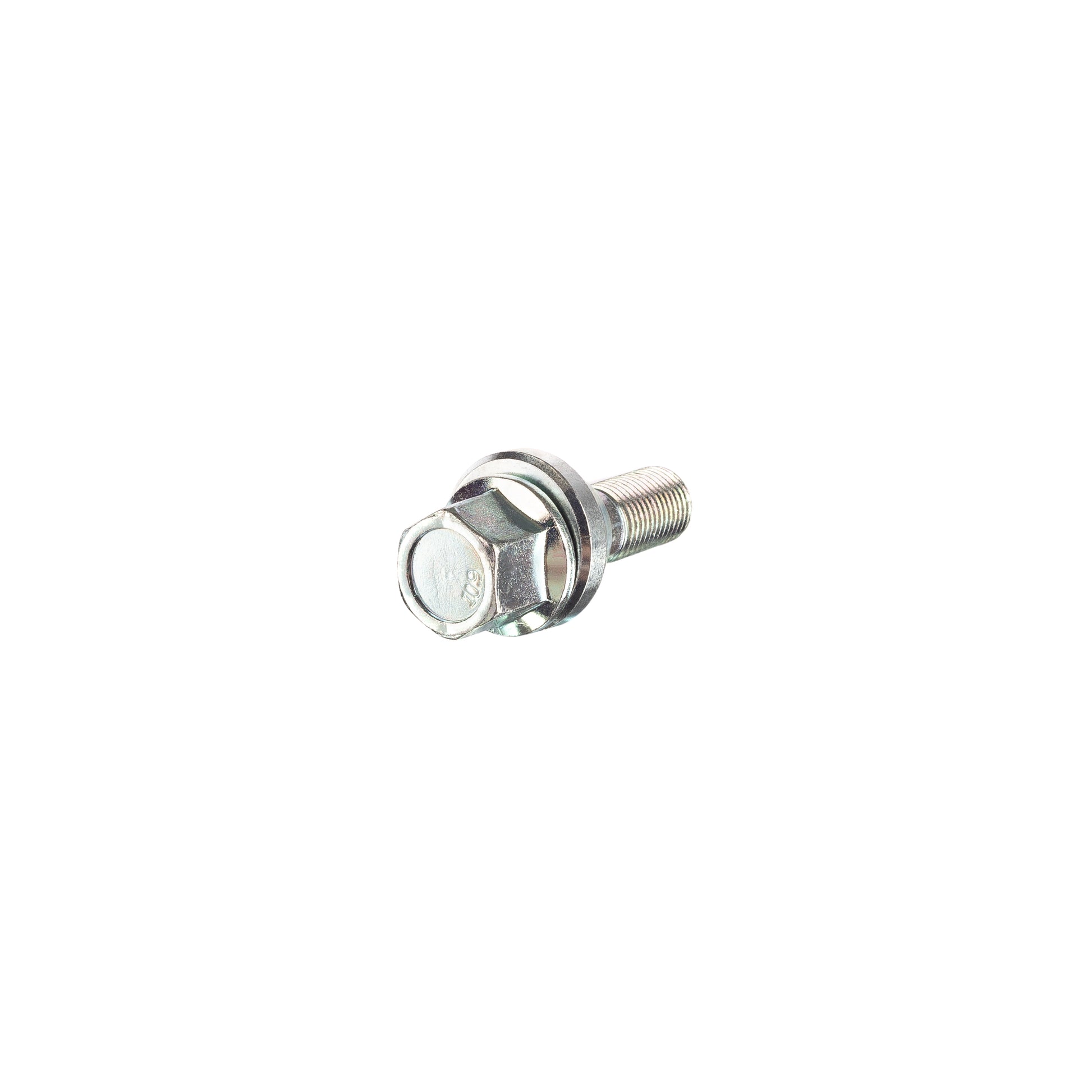

M12 x 1.25, 60° Taper, Vari Bolt (wobble), 17 Hex, Galv

A specialised wheel bolt featuring a floating conical seat that allows up to 1.5mm of adjustment in any direction. This "wobble" or "vari" design compensates for minor PCD (bolt pattern) misalignment between wheel and hub, enabling fitment of wheels with slightly different bolt circles.

How Vari Bolts Work

The conical seat moves independently within the bolt head, allowing the bolt to pass through slightly off-centre holes while still centring the wheel correctly on the hub. As you tighten the bolt, the floating cone aligns itself to the wheel hole angle, distributing clamping force evenly.

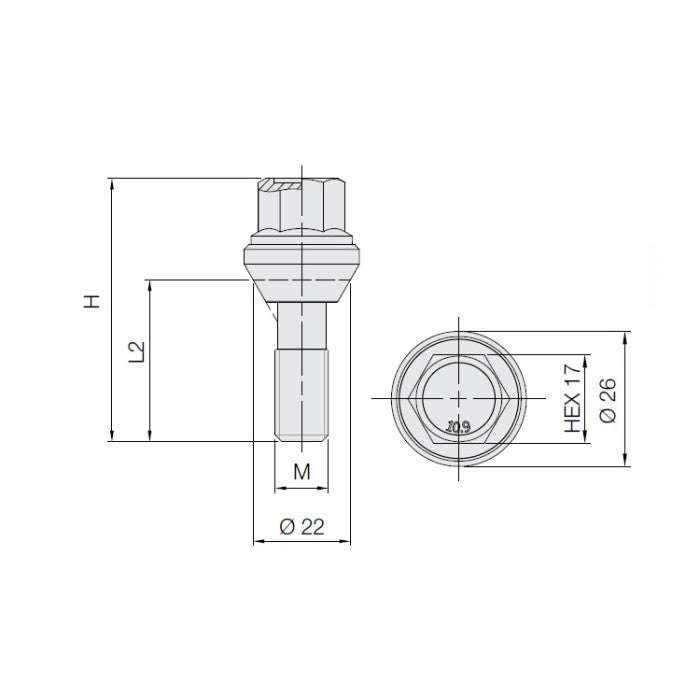

Specifications

• Thread: M12 × 1.25
• Seat Type: 60° floating conical taper (moveable)
• Hex Size: 17mm
• Thread Lengths: 32mm or 35mm shank options
• Finish: Hot-dip galvanised for corrosion resistance
• Material: Grade 10.9 high-tensile steel

Common Applications

Vari bolts are used when:

• Fitting wheels with PCD variations (e.g., 5×100 wheels on 5×112 hubs with slight tolerance)
• Mounting aftermarket wheels with enlarged bolt holes
• Compensating for manufacturing tolerances in custom wheel setups
• Temporary fitment testing before final wheel selection

Important Safety Note

Vari bolts are designed to compensate for small tolerances (±1 - 1.5mm), not major PCD differences. They should only be used with appropriate hub-centric rings and wheels that are close to the correct bolt pattern. Always ensure proper wheel centring and re-torque after 50 - 100 miles.

Thread Length Selection

• 32mm: Standard passenger car applications
• 35mm: For thicker wheels or when using thin spacers
