M12 x 1.25, Lock Bolt, 60° Taper, 17/19 Hex,Chrome

M12 x 1.25, Lock Bolt, 60° Taper, 17/19 Hex

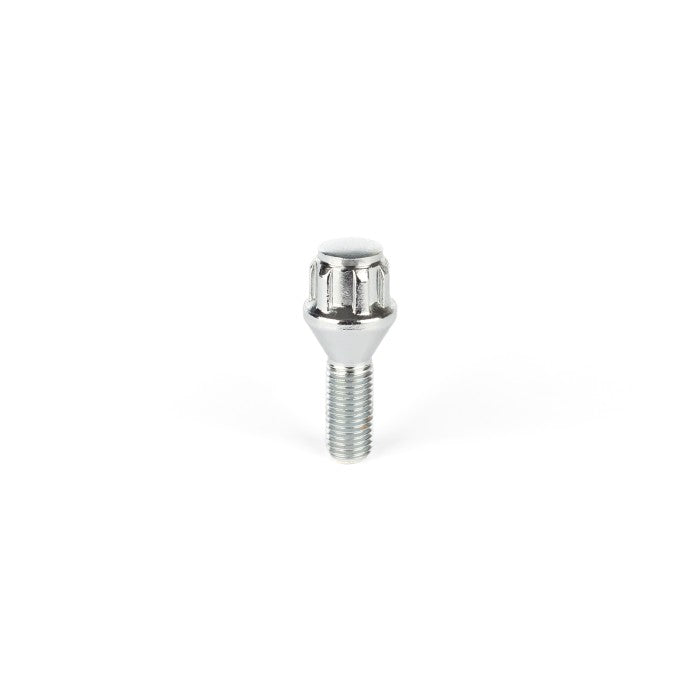

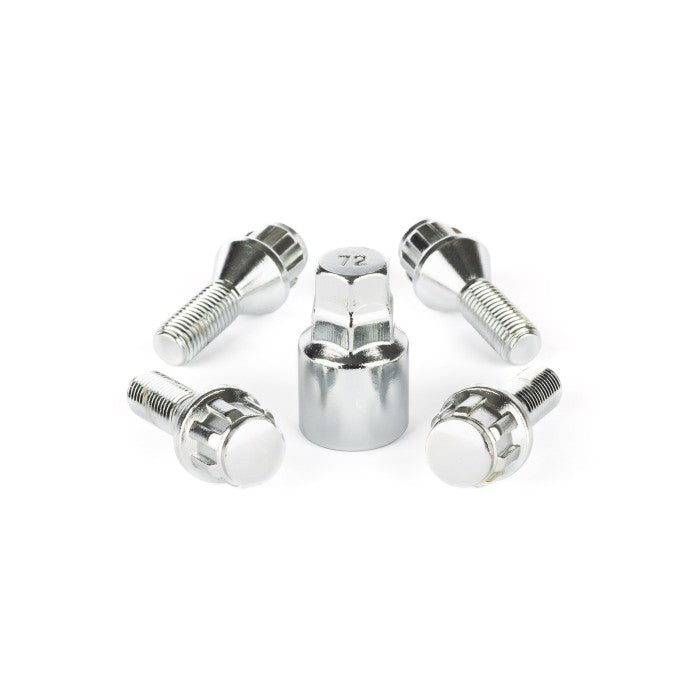

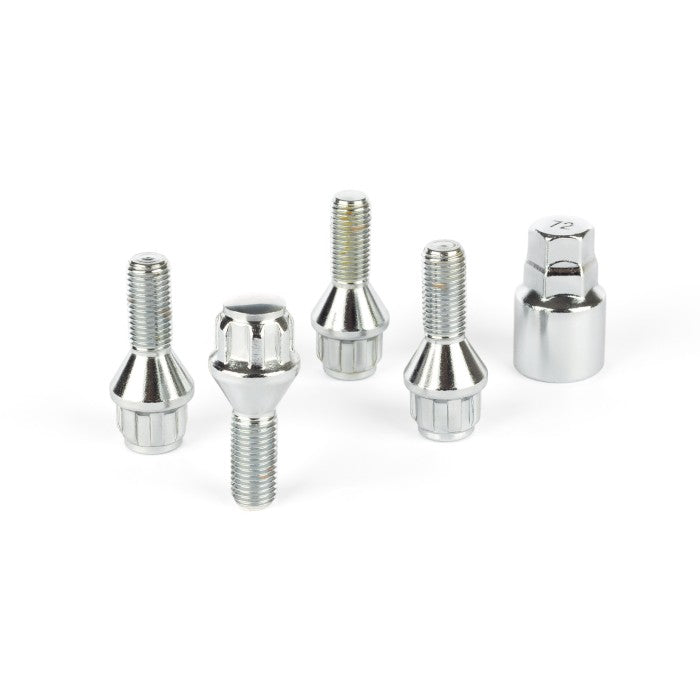

A security wheel bolt with M12 × 1.25 thread and 60° conical seat, providing coded anti-theft protection on vehicles that use finer-pitch M12 bolts. Replacing one standard bolt per wheel with this lock bolt means only the supplied coded key can remove it; the outer body provides no conventional tool grip.

Available in black or chrome. The dual 17/19mm key is compatible with standard torque wrenches and socket bars, making installation straightforward.

Quick Specifications

• Thread: M12 × 1.25
• Seat Type: 60° conical taper
• Key Hex: Dual 17mm / 19mm (key supplied)
• Thread Lengths: Available in multiple lengths (select variant above)
• Finish: Black zinc or chrome
• Material: Grade 10.9 high-tensile carbon steel
• Sold: Individually (1 lock bolt + 1 coded key)

Thread Pitch Applications

M12 × 1.25 (fine thread) and M12 × 1.5 (coarse thread) are not interchangeable. Forcing the wrong pitch into a hub will cross-thread and damage the mounting. The 1.25mm pitch is more common on Japanese and Korean vehicle platforms; the 1.5mm pitch is more common on European platforms. If you're unsure, measure the thread pitch on your existing bolts or check your vehicle handbook before ordering.

Common Applications

Commonly used on vehicles requiring M12 × 1.25 taper-seat bolts, including:

• Honda: Civic, Accord, CR-V (selected models and wheel configurations)
• Nissan: Selected models with M12 × 1.25 bolt fitment
• Mazda: Selected models using fine-thread M12 bolt pattern
• Hyundai / Kia: Selected models with taper-seat M12 × 1.25 bolt fitment
• Aftermarket alloy wheels with 60° taper holes and M12 × 1.25 thread
