M12 x 1.5, Lock Bolt, 60° Taper, 17/19 Hex

M12 x 1.5, Lock Bolt, 60° Taper, 17/19 Hex

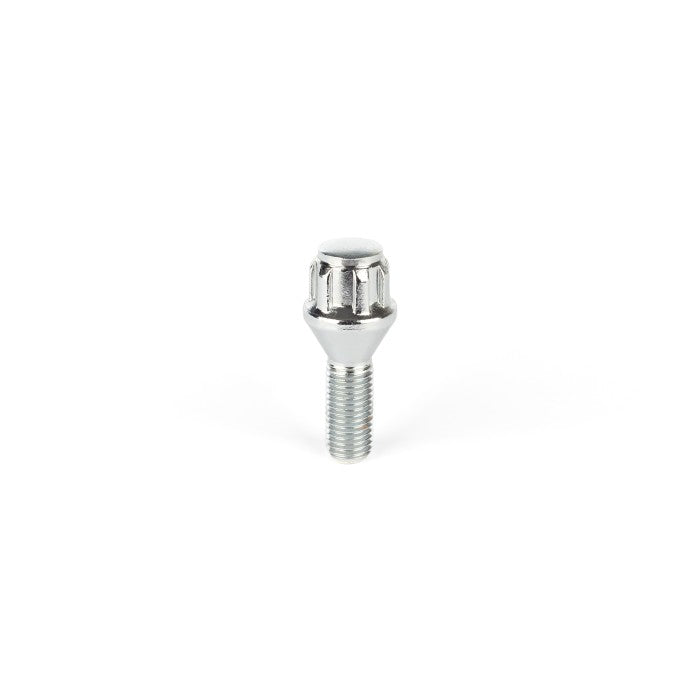

A security wheel bolt with M12 × 1.5 thread and 60° conical seat, providing coded anti-theft protection as a direct replacement for one standard bolt per wheel. The internal key pattern cannot be engaged by conventional sockets; only the supplied coded key tool can install or remove the bolt.

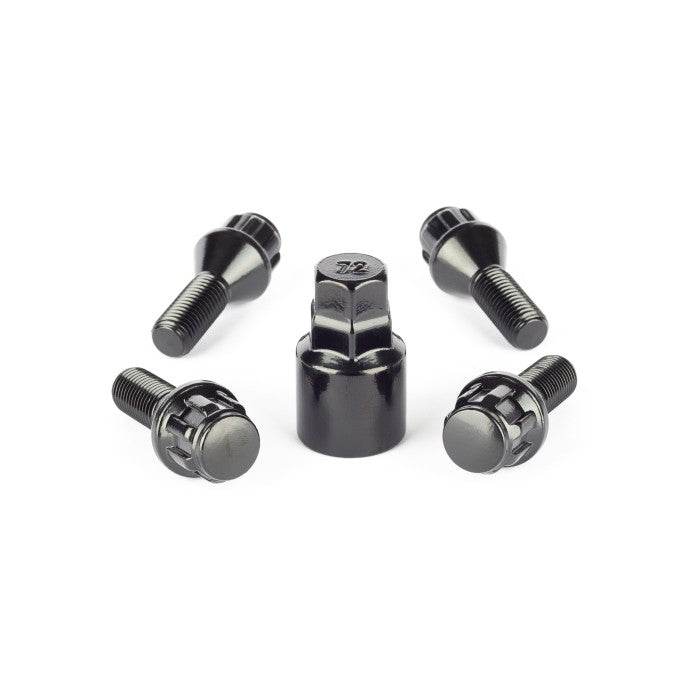

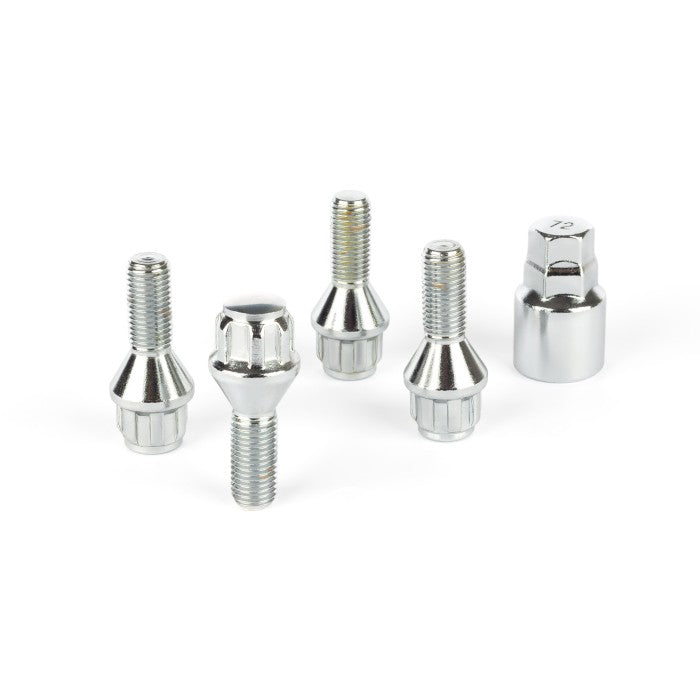

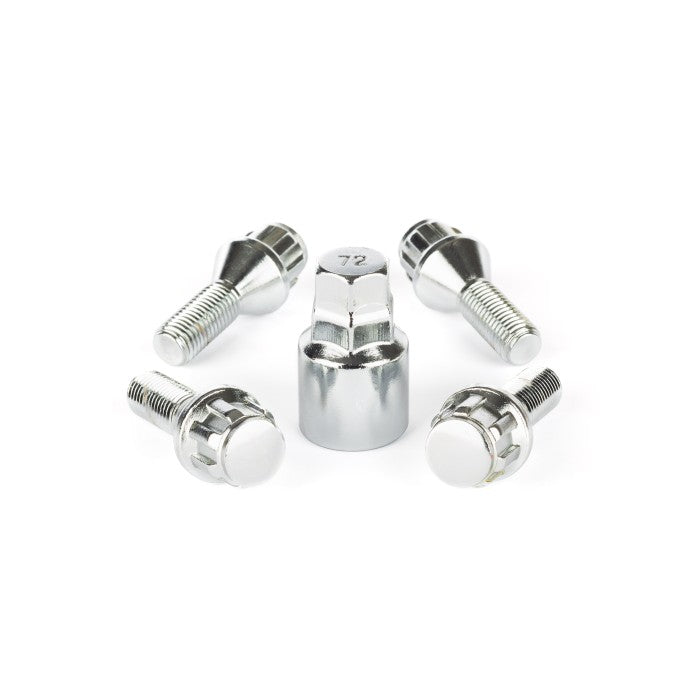

Available in black or chrome across multiple thread lengths, with a dual 17/19mm hex key for straightforward installation.

Quick Specifications

• Thread: M12 × 1.5
• Seat Type: 60° conical taper
• Key Hex: Dual 17mm / 19mm (key supplied)
• Thread Lengths: Available in multiple lengths (select variant above)
• Finish: Black zinc or chrome
• Material: Grade 10.9 high-tensile carbon steel
• Sold: Individually (1 lock bolt + 1 coded key)

60° Conical Seat for Fitment

The 60° taper seat is the standard geometry for most aftermarket alloy wheels and a wide range of OEM fitments. As the bolt is tightened, the angled face centres the wheel concentrically on the hub and creates a secure mechanical lock.

This seat type must match the wheel; fitting a conical bolt to a radius-seat wheel prevents full surface engagement and compromises wheel retention.

Common Applications

M12 × 1.5 is the standard thread across a range of European and Asian vehicles, including:

• BMW: Older models and selected current models using taper-seat OEM bolts (verify per model year)
• Ford: Selected models using M12 × 1.5 taper-seat bolts with genuine alloy wheels
• Aftermarket alloy wheels with 60° taper bolt holes and M12 × 1.5 thread
